Threader - Dialogue Kit

Visual Dialogue System for Unity — build branching conversations with a node-based graph editor, no boilerplate required.

v1.0.1   Discord

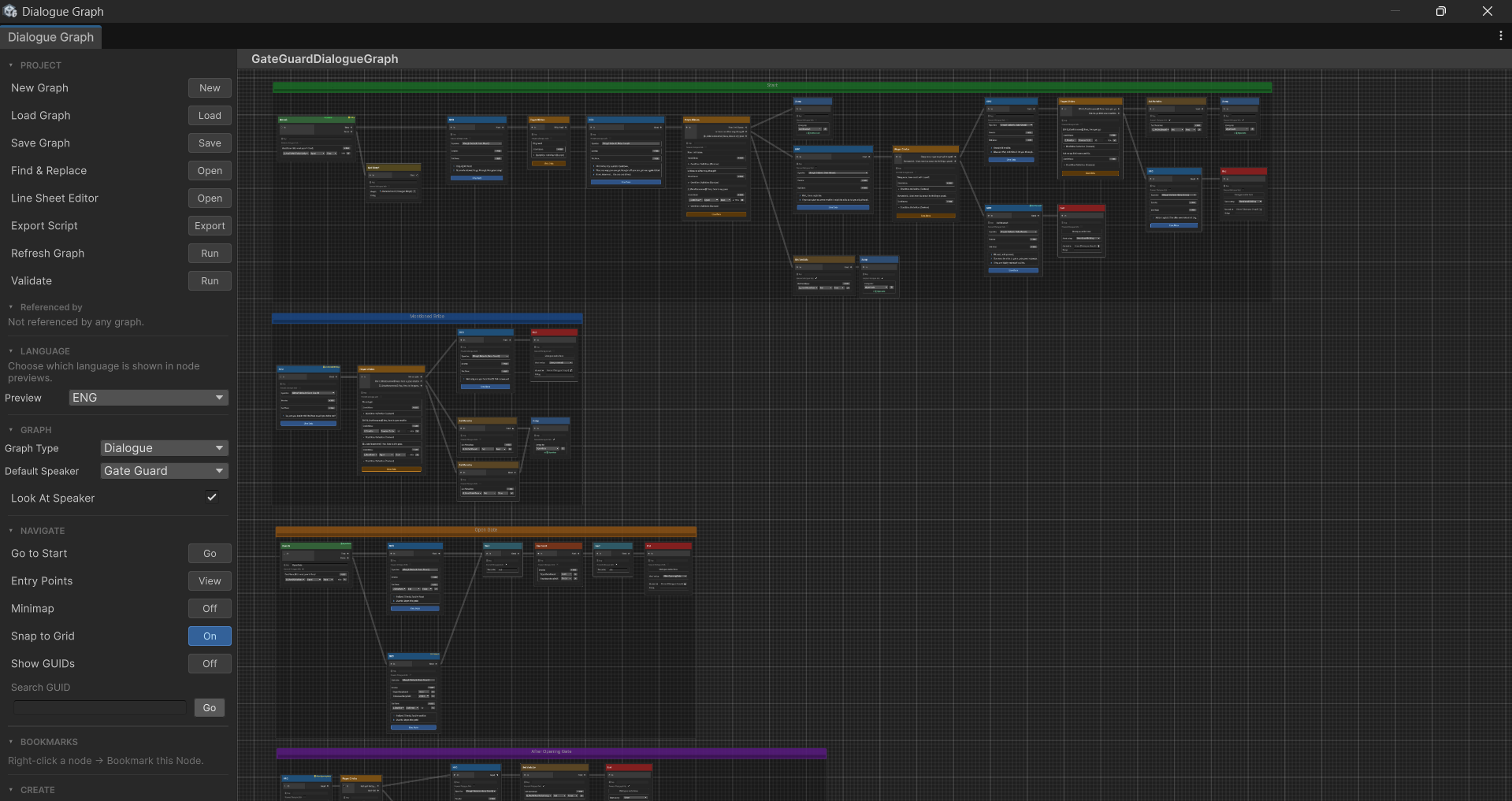

Threader graph editor

Features

  • Visual graph editor — drag, connect, and organise nodes on an infinite canvas
  • 15 node types — NPC lines, player choices, branching, switch, weighted random, sub-graphs, variables, audio, animator triggers, events, waits, and more
  • Sub-graph system — call any dialogue graph from within another and return — exactly like a function call
  • Bark system — fire-and-forget ambient lines that run in parallel without blocking the player
  • Line Sheet system — per-graph companion assets that store per-speaker audio clips and animator actions for every NPC line; supports multiple speakers sharing the same graph
  • Multi-language support — assign multiple line sheets per graph (one per language) and switch at runtime with SetActiveLanguage(); line text and choice text are automatically resolved from the active language's sheet
  • Language Library — optional central asset that defines project-wide languages, auto-populating language slots on every graph for typo-free setup
  • Node templates — save any selection of nodes as a reusable drag-to-stamp template
  • Built-in variable store — Bool / Int / String variables with inline type-aware conditions on choices — no C# needed
  • Text token substitution — embed variable values directly in dialogue: You have {gold} {gold:name}
  • Entry points — jump into any branch of a graph based on story state
  • Spatial audio — per-speaker 3D audio source positioning
  • Animator integration — set parameters on any registered speaker's Animator
  • Custom conditions — register C# delegates or a ConditionProvider asset for complex game state
  • Edit-mode preview window — step through any graph without entering Play mode
  • Bookmarks — pin any node to the sidebar for one-click navigation in large graphs
  • Export script — export any graph as a plain-text screenplay for VO sessions or writer review
  • Choice history — track visited choices with save/load serialization
  • Singleton DialogueManager — one component drives everything; subscribe to events from any script

Minimum setup

Seven steps to a working dialogue:

  1. Create a Speaker Roster — right-click in the Project window → Create → Threader → Speaker Roster, then add your speaker names
  2. Create a Variables Store (optional) — Create → Threader → Variables Store, then add any variables your dialogue needs
  3. Create a Dialogue Graph — Create → Threader → Dialogue Graph, then double-click it to open the graph editor and build your conversation
  4. Add a DialogueManager component to an empty GameObject in the scene — assign your Speaker Roster and Variables Store
  5. Add an NPCDialogue or DialogueTrigger component to your NPC — assign the graph and speaker name
  6. Wire the UI — add DialogueUI to a GameObject (with UI_Dialogue.uxml), or subscribe to OnNPCLine / OnChoiceNode for a fully custom UI
  7. Play and interact with the NPC to start the conversation

→ See Quick Start for the full step-by-step walkthrough with detailed explanations.

Section What's in it
Quick Start End-to-end setup in ~10 minutes
Tutorial Guided walkthrough building a complete dialogue scene
Graph Editor Canvas controls, sidebar, shortcuts, tools
Dialogue Preview Step through graphs in edit mode without entering Play mode
Node Reference All 15 node types with field descriptions
Variables Variable store, set actions, text tokens
Conditions Inline conditions and C# custom conditions
Events Node events, global events, and C# event subscriptions
Speaker Roster Speaker name assets, NPCDialogue setup, and name resolution
Sub-Graph Call any graph from within another and return
Bark System Ambient fire-and-forget lines that don't block the player
Line Sheet Per-speaker audio clips and animator actions for NPC lines
Translation Multi-language setup, Language Library, and runtime language switching
Node Templates Save and stamp node selections as reusable templates
UI Built-in DialogueUI, Canvas/uGUI custom UI, and event hooks
Entry Points Multi-branch graphs and state persistence
Saving Persisting variables, choices, and entry points
API Reference Events, interfaces, and code API
Troubleshooting Solutions to common problems and how to report bugs
Roadmap What's coming in upcoming releases
Changelog Full version history
